Install the Employee Directory Connector
The Employee Directory Connector (EDC) bridges your internal Active Directory or LDAP identity store with your ThoughtFarmer intranet, enabling automated user provisioning and single sign-on (SSO) workflows.
Before initiating this installation, please submit a request to the ThoughtFarmer Helpdesk. Our Support team will partner with your IT staff to ensure pre-requisites are verified and assist with database token generation.
Before you begin
To complete the EDC setup successfully, you must complete the following foundational administrative configurations prior to running the installation wizard:
Configure a login provider: Set up your primary authentication method within the ThoughtFarmer Admin Panel.
Configure the login hostname: Define and bind your designated authentication FQDN/URL.
Configure the Active Directory page: Establish your primary Active Directory store connection within the application settings.
Step-by-step installation walkthrough
Launch the latest EDC Manager installer package on your designated host server. The ThoughtFarmer Configuration Wizard window will open.

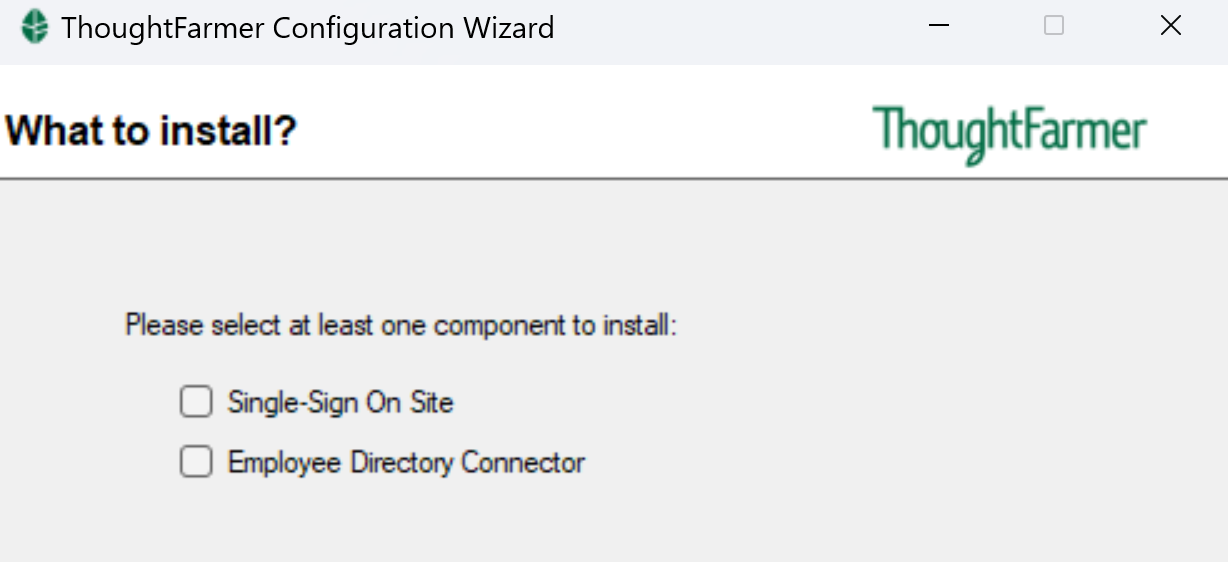

Select the checkbox(es) corresponding to the specific application component(s) you are deploying.
Enter the Site Name: This is the public, brand-facing intranet name displayed to your end users throughout the application interface.
Enter the Short Name: This is an internal, system-level identifier used for backend routing. Note: This value is permanent and is never exposed to end users.

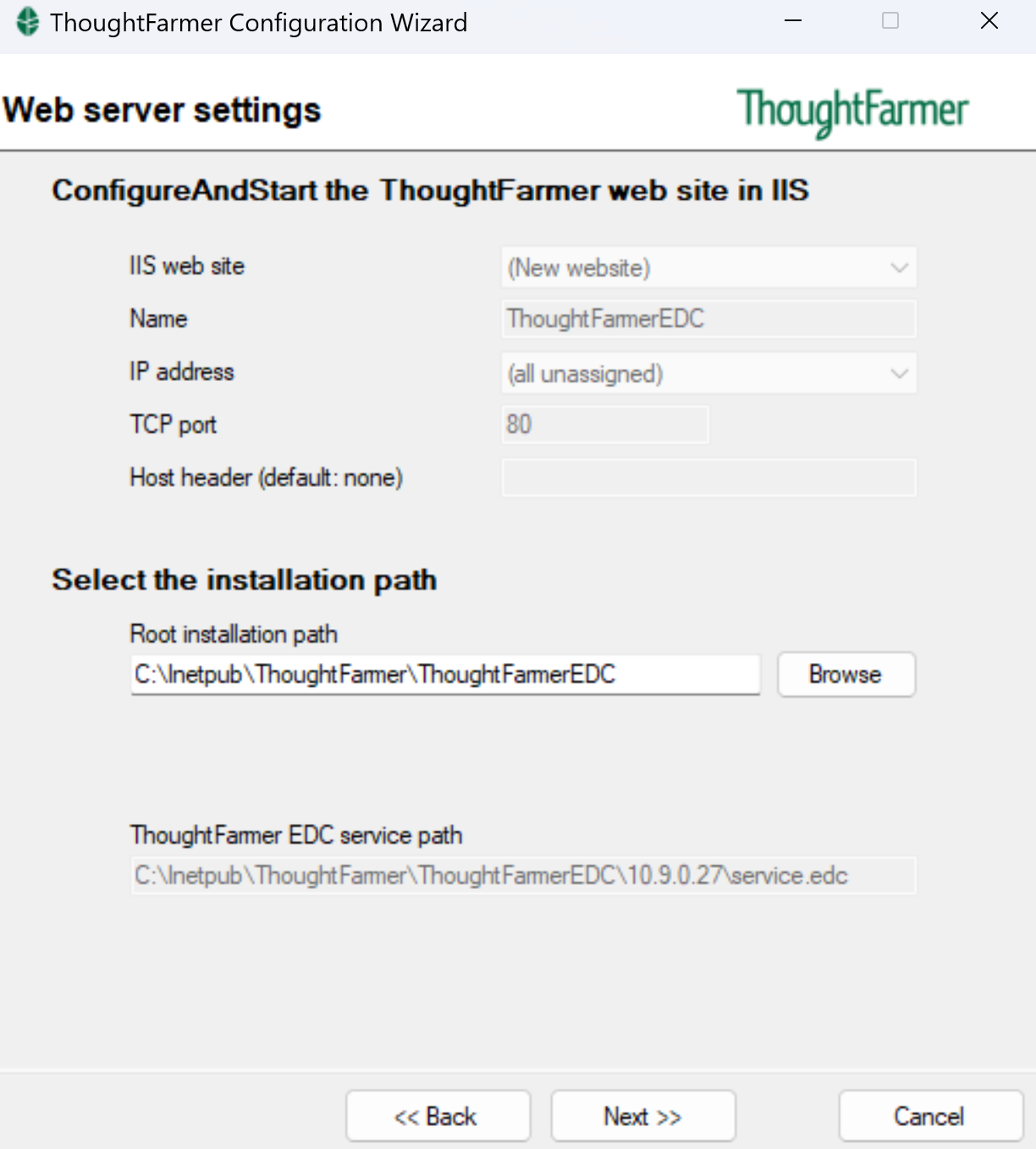

Configure the Internet Information Services (IIS) web server settings using the dropdown menus, or click Browse to define a custom installation directory path on the local filesystem.

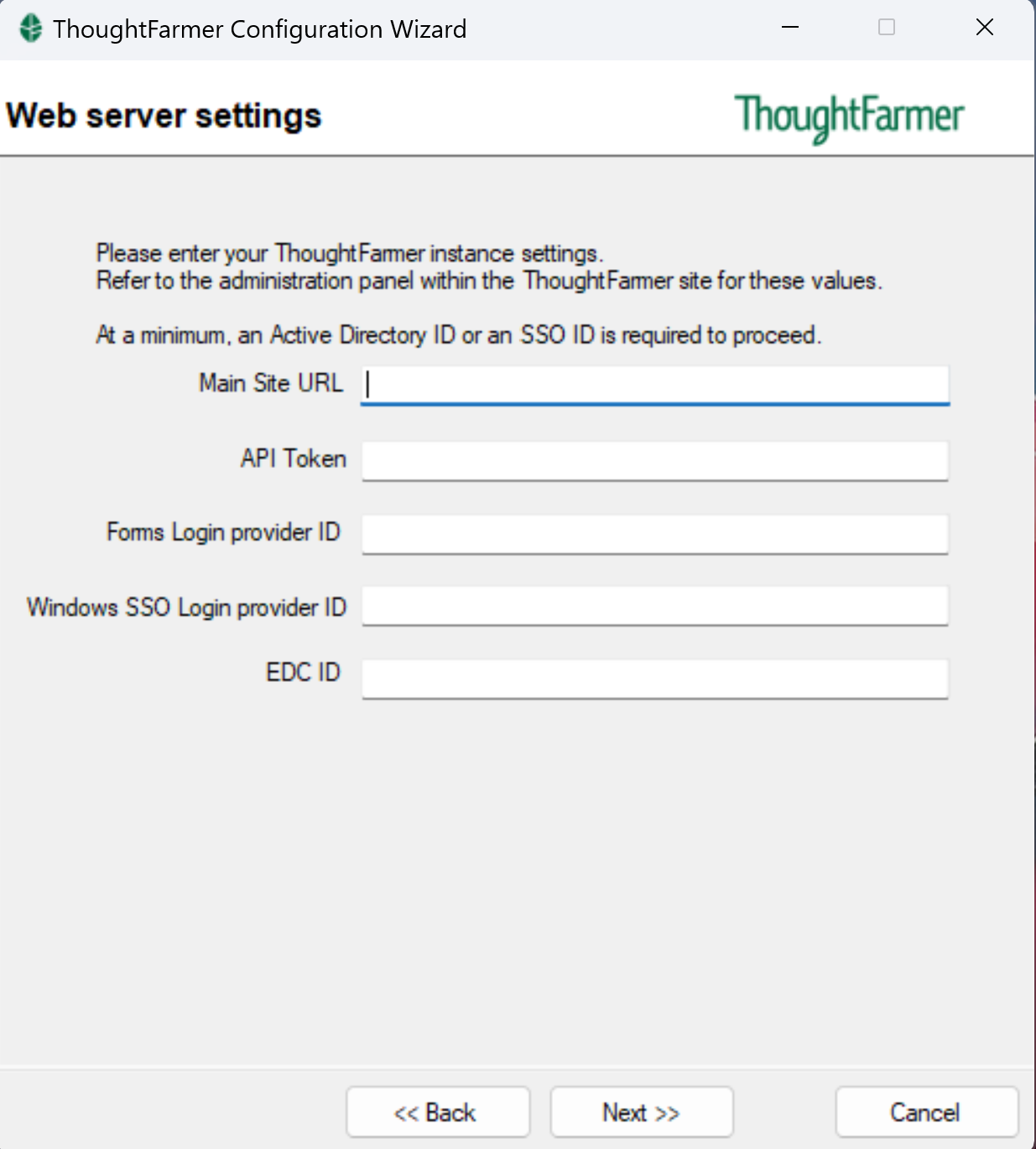

Complete the mandatory integration parameters using the field reference table below.
Click Next and follow the remaining system prompts to complete the installation wizard.
| Parameter field | Description | Navigation path / Value retrieval |
|---|---|---|
| Main Site URL | The primary FQDN used to access your intranet. |
Enter your full site URL (e.g.(https://intranet.domain.com)).
|
| API Token | Security token required for backend service authentication. | Retrieved directly from the database with the assistance of the ThoughtFarmer Support team. |
| Forms Login Provider ID | Unique identifier for form-based authentication. | Navigate to Admin panel > Authentication > Login provider. Click your Forms Login Provider, locate the SAML Configuration ID under Form configuration, copy the value, and paste it into this field. |
| Windows SSO Login Provider ID | Unique identifier for Windows Single Sign-On. | Navigate to Admin panel > Authentication > Login provider. Click your SSO Login Provider, locate the SAML Configuration ID under Windows configuration, copy the value, and paste it into this field. |
| EDC ID | Unique identifier for your target directory store. | Navigate to Admin panel > Users & security > Employee Directory Connector. Select the Active Directory store you are configuring, copy the ID value listed under the Basic information tab, and paste it into this field. |
