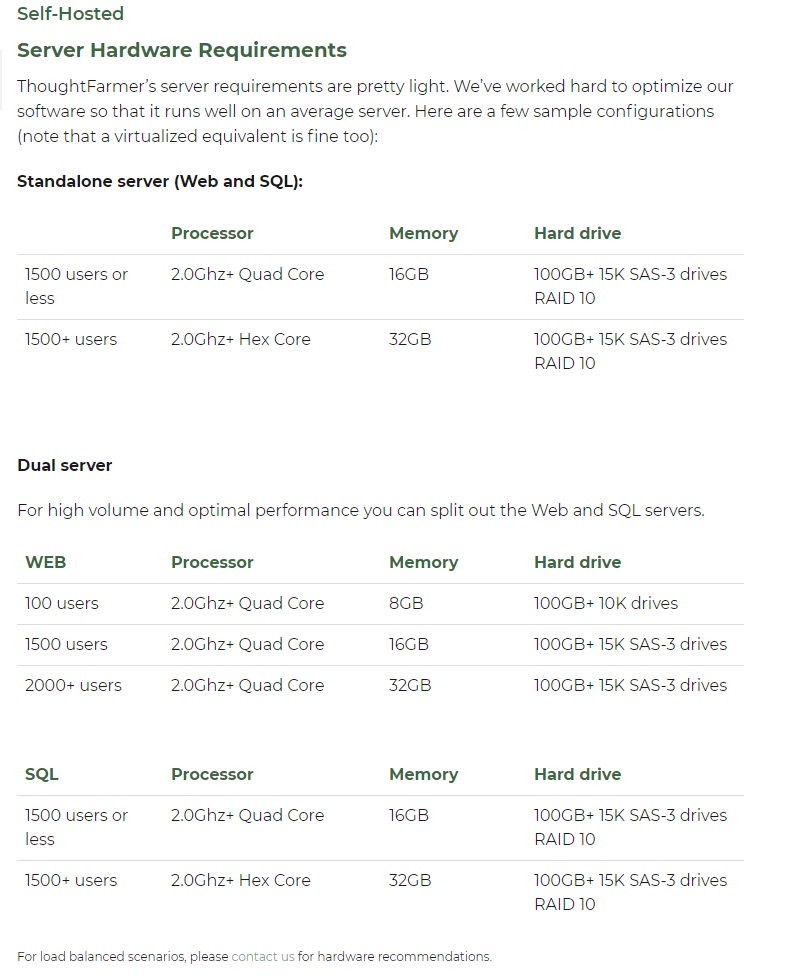

Hardware specs

Windows version support

Windows Server 2016 / 2019 / 2022

Web Server Requirements

Install prerequisites

1. Install URL Rewrite 2.0.
2. Install Microsoft Visual C++ Redistributable 2010.
3. Install Microsoft Visual C++ Redistributable 2013.
4. Install Microsoft Visual C++ Redistributable 2015.
5. Install NET Framework 4.8 runtime (requires a server reboot).

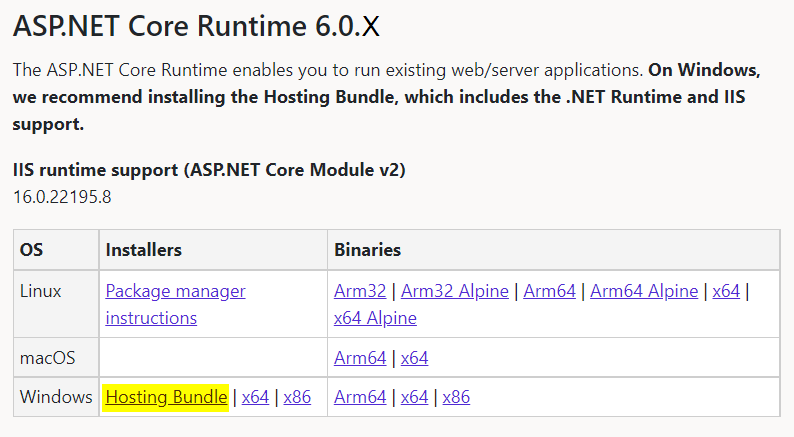

6. Install the latest .NET Core 6.0 on your web server. Select the "ASP.Net Windows hosting bundle" option.

7. Download and install the latest Amazon Corretto 17 JDK on the webserver for your server architecture:

   • Windows Server x64 Download
8. Install the latest version of Open Distro for Elasticsearch Windows x64:


Configure IIS features and role services

The following instructions are for configuring Windows Server 2016 from scratch. If IIS is already installed and running, please use this section as a checklist to ensure all additional required components are configured.

1. From Server Manager, click Manage in the upper right hand corner and then click Add Roles and Features.
   • You can also select this from the quick select menu if it has not been hidden.
2. Under Server roles add Web Server (IIS). Accept and click Next.
3. Add required role services for Web Server (IIS):

   • Common HTTP Features
     • Static Content
     • Default Document
     • HTTP Errors
   • Application Development
     • ASP.NET 4.5
     • Application Initialization
     • .Net Extensibility 4.5 (4.7 works too)
     • ISAPI Extensions
     • ISAPI Filters
     • .NET Framework 4.8
   • Security
     • Windows Authentication
     • Basic Authentication
     • Request Filtering
   • Management Tools
     • IIS Management Console
   • Performance
     • Static Content Compression
   • Recommended Additional Role Services:
     • Health and Diagnostics
       • HTTP Logging
       • Request Monitor


4. Confirm selections and click Install.
5. If you plan to use HTTPS on the intranet site, install the appropriate SSL certificate on the server. If you wish to use Desktop Connector, please use a publicly signed SSL certificate. Self-signed certificates are not supported with Desktop Connector.

Enable Anonymous Authentication in IIS

Please make sure Anonymous Authentication is enabled in IIS. You can do this by following these steps:

1. Open up IIS on the web server.
2. Click on the name of your server on the left panel in IIS.

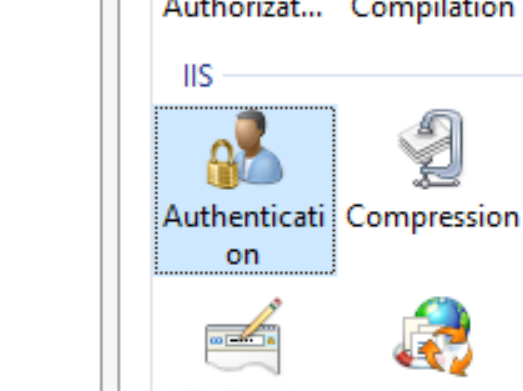

3. Double click the Authentication icon.

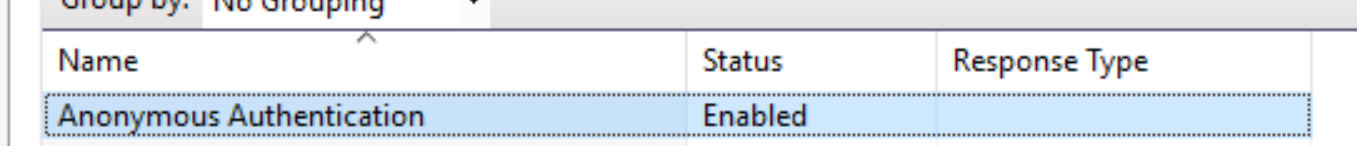

4. Make sure Anonymous Authentication is enabled. If not, right click it > Enable.



Database Server Requirements

SQL server version support

SQL Server 2017 / 2019 (Standard or Enterprise Edition is required)

Note: SQL Server Express editions should not be used due to database size being limited to 10GB

SQL Server Requirements

• Database management Engine
• SQL server Management Studio
• Minimum SQL Compatibility level needs to be 2016 or higher.

Enable Filestream for Thoughtfarmer

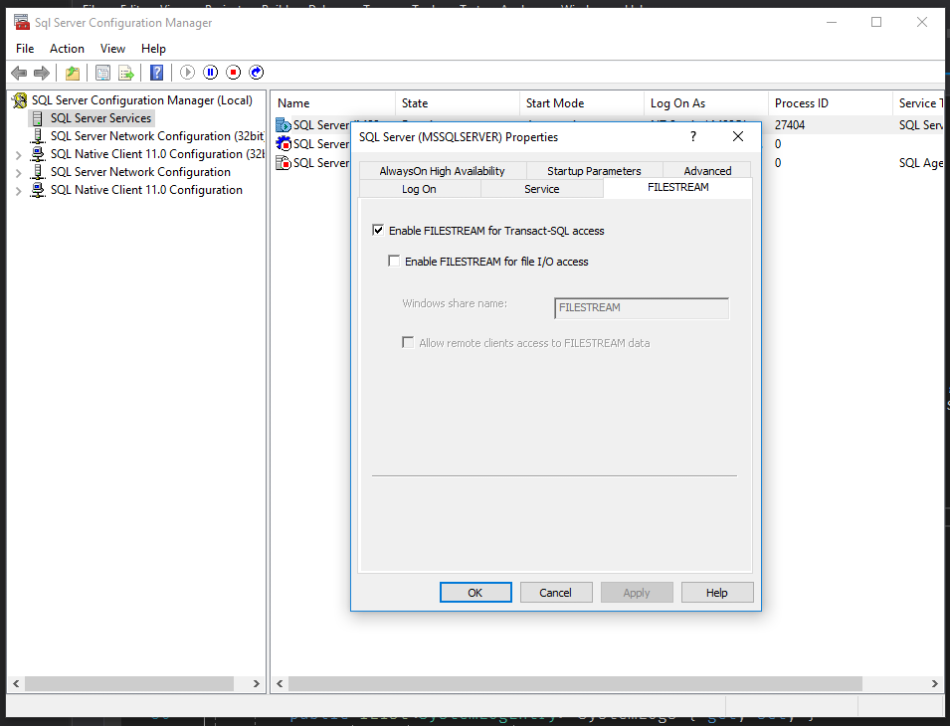

Open up SQL Server Configuration Manager and enable FILESTREAM for Transact-SQL access.

Once SQL Server Configuration Manager has been updated open SQL Server Management Studio,

Run the query:

EXEC sp_configure filestream_access_level, 1

Then run the query:

RECONFIGURE

Once these changes are made: RESTART SQL SERVICE
